Integration recommendations

This page describes recommended integration patterns for common webshop touchpoints.

[WIP] Work in Progress

This documentation is currently under development. If you encounter any gaps, please contact your project manager at Crystal Design.

There are two common approaches on a product detail page:

  • Embed the PDP module
    • Use the DIVA PDP module to render product content (e.g. images and presentation)
    • From the PDP, the configurator can be opened when needed
  • Keep the shop PDP and add a “Configure” CTA
    • The webshop renders the PDP
    • A button opens the configurator

Product mapping requirement​

The webshop needs to store the DIVA productId alongside the shop article and pass it to DIVA at initialization.

Example initialization for the configurator from the CTA Button in the:

diva.currentComponent = {
  type: 'DIVA_WEBPLANNER',
  parameters: { productId: '<PRODUCT_ID>' },
};

If basket integration is enabled, the webshop listens for onAddToBasket and forwards the divaNr to the webshop backend.

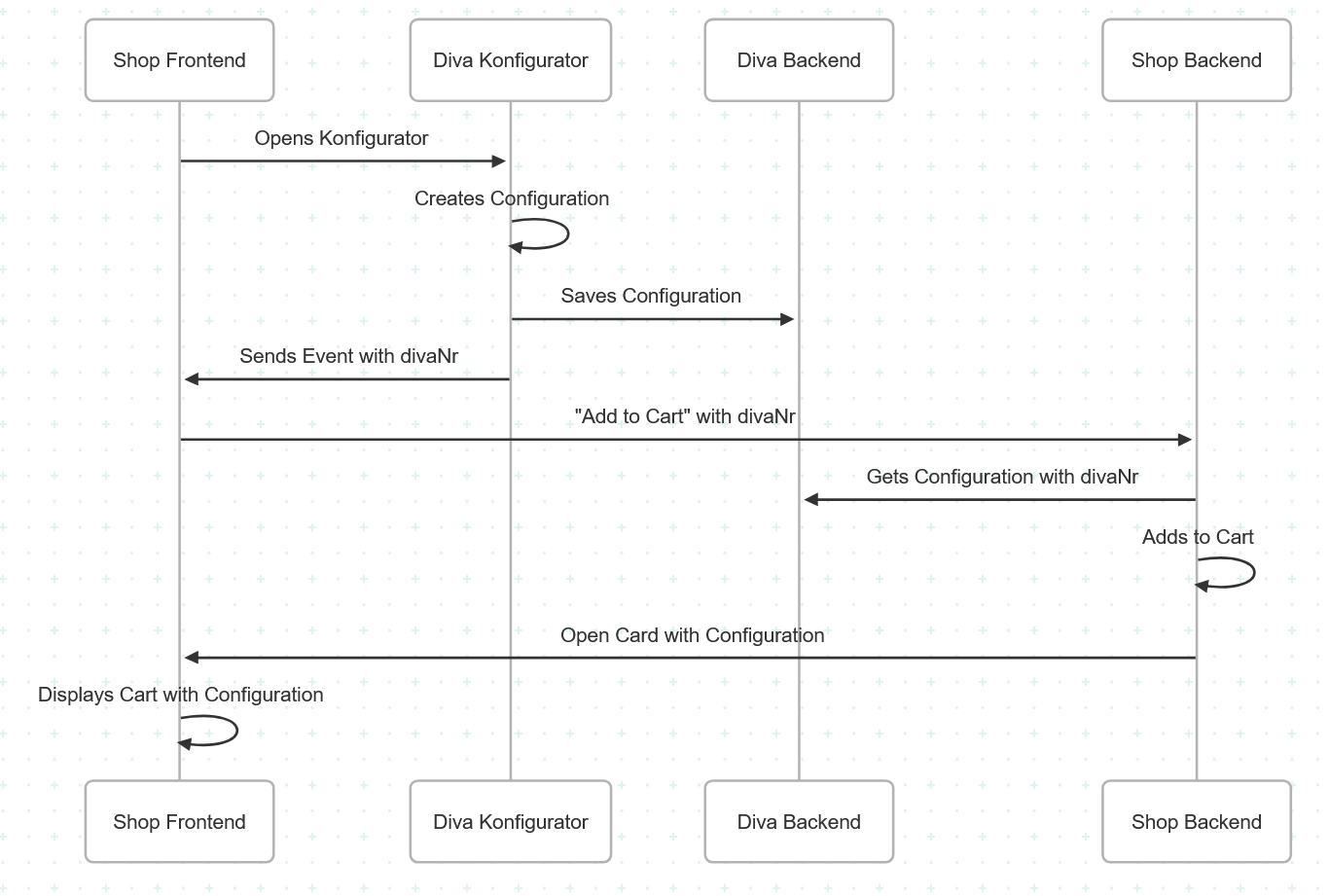

High-level flow:

  1. Webshop listens for onAddToBasket
  2. Webshop backend receives the divaNr
  3. Webshop backend fetches the configuration from the DIVA API (using X-API-KEY)
  4. Webshop backend converts configuration to basket line items and adds them to the basket

Add to Card Flow Image

See:

Basket page integration​

On the basket/cart page, it is recommended to provide:

  • Edit configuration: a link/button to reopen the configurator with the saved divaNr
  • DIVA PDF: a link to the PDF document provided in the configuration object

Typical behavior:

  • When the user clicks “Edit”, open the configurator with divaNr
  • When the user clicks “PDF”, open the PDFDocumentURL

Example (reopen configurator):

diva.currentComponent = {
  type: 'DIVA_WEBPLANNER',
  parameters: { divaNr: '<DIVA_NR>' },
};

See:

Dedicated configuration page (recommended for deep-links)​

It is recommended to provide a dedicated page that can open a configuration by URL parameter.

Example URL:

/configurator?DivaNr=DIVA-7867231-1&lang=fr

Notes:

  • A deep link like this is needed so that DIVA can provide it in its PDF, allowing the user to return to an existing configuration.
  • If no DivaNr parameter is present, the page can show an input field where the user enters a DivaNr manually.
  • The page loads the configurator with the provided divaNr and optionally uses lang to set the same language the configuration was saved

Landing / model page integration​

For marketing pages that promote a single model, it is recommended to open the configurator directly with a product reference:

diva.currentComponent = {
  type: 'DIVA_WEBPLANNER',
  parameters: { productId: '<PRODUCT_ID>' },
};

Version management​

DIVA releases new versions on a monthly basis. It is recommended to keep the integration up to date to benefit from the latest features, performance improvements, and bug fixes.

Updating the version​

Typically, only the version number in the script imports needs to be changed:

<!-- Example: updating from version 1.2.0 to 1.3.0 -->
<script src="https://cdn.jsdelivr.net/npm/@crystaldesign/diva-core@1.3.0/build/umd/diva-core.umd.min.js"></script>

To simplify updates, it is recommended to store the DIVA version as a configurable setting in the webshop (e.g. in the admin panel or CMS configuration). This allows administrators to update the version without code changes or deployments.

Example implementation:

// Version from shop configuration (e.g. admin setting, environment variable)
const DIVA_VERSION = shopConfig.divaVersion; // e.g. "1.3.0"

// Dynamically load scripts with configured version
function loadDivaScripts(version) {
  const scripts = [
    `https://cdn.jsdelivr.net/npm/@crystaldesign/diva-core@${version}/build/umd/diva-core.umd.min.js`,
    `https://cdn.jsdelivr.net/npm/@crystaldesign/diva-web-planner-react@${version}/build/umd/diva-web-planner-react.umd.min.js`,
    // ... other module scripts
  ];
  // Load scripts...
}

This approach allows quick version updates in case of issues or when a new release is available.
